PBS-918 Packaging Stations

Dehnco Packaging Stations are Modular

The PBS-918 Packaging Stations are designed to the most ergonomic standards.

Key Benefits

Organize Packaging Stations Product Flow
Create Maximum Packaging Stations Storage Space
Stimulate Packaging Stations Organization
Maximize Floor Space
Increase Packaging Stations Efficiency
Boost Packaging Stations Productivity
Raise Worker Morale
Improve Packaging Stations Aesthetics

Build Quickly with Our Solution Concepts Library

Over 5,000 designs available for download

Browse our Solution Concepts Library for inspiration for your next project. All of our designs can be modified and customized to meet your exact needs.

Browse the Library

Typical Applications

PBS-918 Packaging Stations are very common when the application requires increased storage of small packaging items and material.

The lower sorting unit provides numerous storage bins for literature, samples, and other items to be included with the packing.

A roll bar kit and Rotary Cutter provide efficient dispensing and cutting of roll packaging material.

The small slat wall module provides convenient above table storage of additional supplies.

Six different size cartons up to 30-inches by 30-inches flat size are stored above the table within easy reach of the worker. The slat wall module adds additional storage for smaller items.

The PBS-918 Packaging Stations are designed to the most ergonomic standards. Packaging Stations are supplied with Laminated tops with rounded T-molded vinyl edges for safety and protection. All the components adjust in height to accommodate the worker and the location of all materials. Additional modules can be added to the system for increased storage of materials, supplies and equipment.

General Specifications

  • Above and Below Packaging Stations components can be added or deleted as required.
  • Packaging Stations are adjustable in height from 29-inches to 36-inches
  • All Packaging Stations components are adjustable to accommodate the worker
  • All sheet metal components 14-16 gauge steel.
  • Packaging Stations support up to 1800 lbs.
  • Packaging Stations have rounded edges with inlaid t-molded vinyl edges for protection
  • All Packaging Stations are provided with the highest quality tops.
  • Various Table Tops Available
    1. Laminated, vinyl edged
    2. ESD
    3. Laminated, self edged
    4. Shop top
    5. Butcher block
    6. Metal
    7. Roller bearing

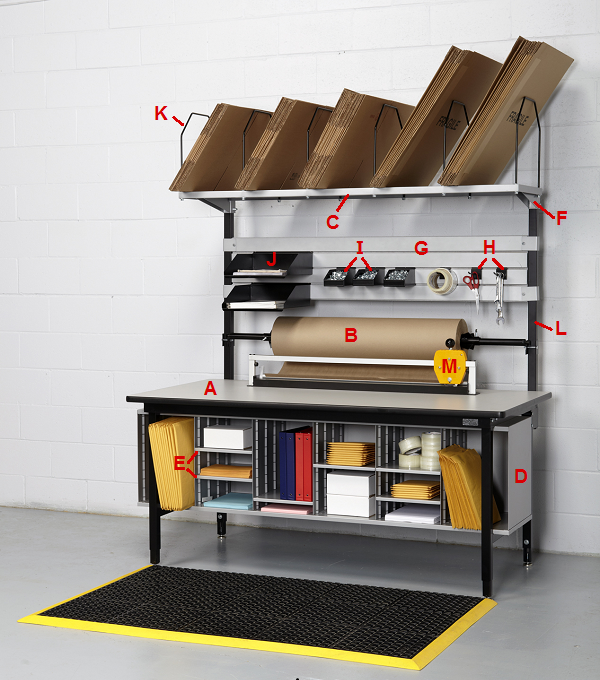

System Components

PBS-918 Packaging Stations
  1. D-9000 Packaging Workstation 83 x 33 x 29-36"H
  2. D-9030 Roll Bar for Tables
  3. D-9031A Cartoning Rack Only (with holes) 63-3/4 x 16-1/2
  4. MS-6815-30 Sorter 68 x 15 x 17-3/8"H - NO LONGER AVAILABLE
  5. MSH-1511 Sorter Shelf 11-1/8 x 15 - NO LONGER AVAILABLE
  6. D-9049 Sorter Support Brackets (set of 2)
  7. D-9050 Slat Wall
  8. D-9051 Slat Wall Hook
  9. D-9052 Slat Wall Small Bin
  10. D-9053 Slat Wall Literature Shelf
  11. D-9095 Cartoning Rack Divider
  12. D-9098 Straight Uprights (set of 2)
  13. RC-5064 Cutter Bar & Knife 64" long (50" cutting capacity)
