OC-1503 Testing Station - Over Conveyor

Dehnco Testing Stations are Modular

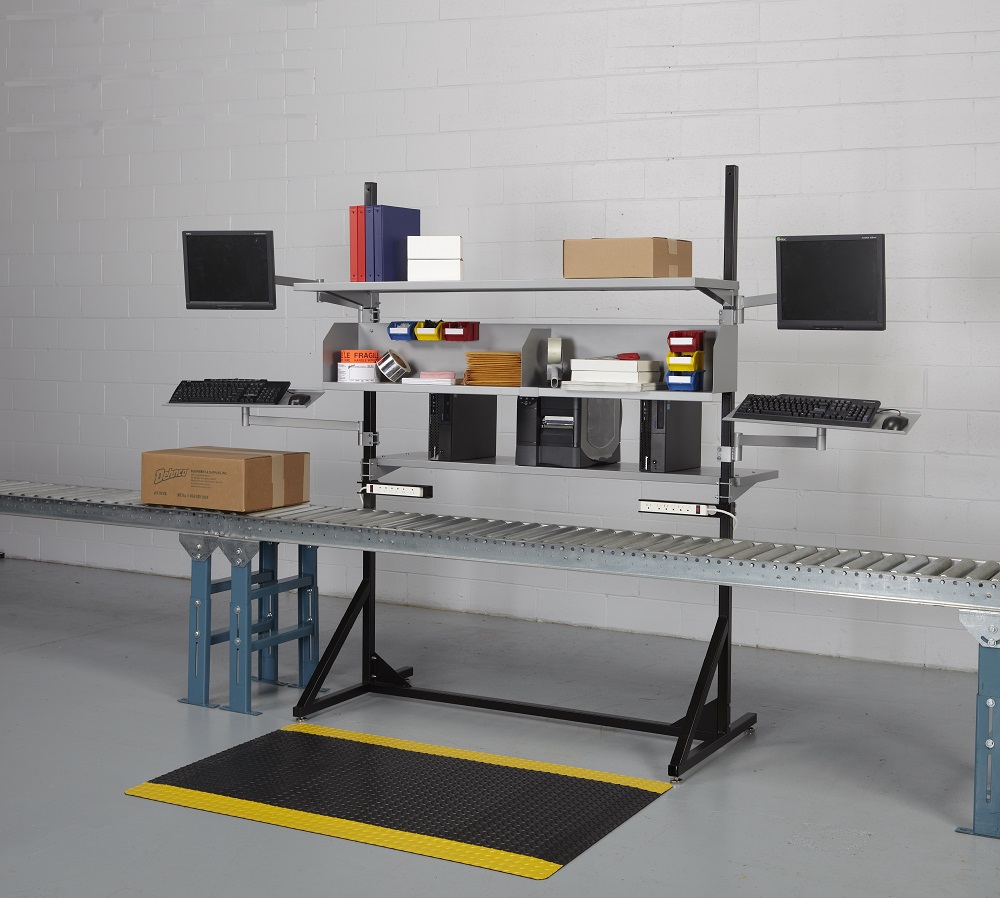

OC-1503 Testing Station illustrates two keyboards and two CRT screens. Both units are suspended from a sturdy arm which swings and pivots to position the keyboard in the most efficient position.

Key Benefits

Organize Product Flow
Create Maximum Testing Station Storage Space
Stimulate Testing Station Organization
Maximize Floor Space
Increase Testing Station Efficiency
Boost Testing Station Productivity
Raise Worker Morale
Improve Testing Station Aesthetics

Build Quickly with Our Solution Concepts Library

Over 5,000 designs available for download

Browse our Solution Concepts Library for inspiration for your next project. All of our designs can be modified and customized to meet your exact needs.

Browse the Library

Typical Applications

OC-1503 Testing Stations are for over-the-conveyor applications where floorspace is tight and the need for work space is great.

OC-1503 Testing Station illustrates two keyboards and two CRT screens. Both units are suspended from a sturdy arm which swings and pivots to position the keyboard in the most efficient position.

Additional modules can be added to the system for increased storage of materials, supplies and equipment. All packing benches are adjustable in height to accommodate the individual worker.

General Specifications

  • Above and Below Testing Station components can be added or deleted as required
  • Other components are available for additional storage requirements
  • All Testing Station components are adjustable to accommodate the worker
  • All sheet metal components are 14-16 gauge steel.
  • Testing Station supports up to 800 lbs.
  • Testing Station frame assemblies come in 1 ½- inch or 2-inch square tubular steel construction
  • System is easy to assemble
  • Casters can be added to a Testing Station to make it portable

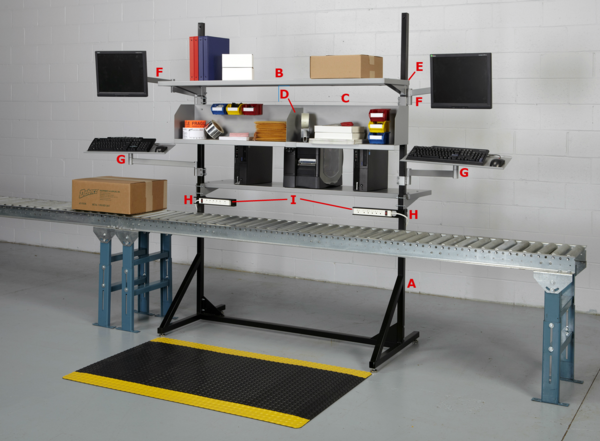

System Components

Testing Station - Over Conveyor
  1. MRS-59 Multiple Roll Stand 59 x 24 x 84-1/2"H
  2. D-9031C Cartoning Rack ONLY (no holes,uprights or div.)
  3. D-9032 Document Shelf
  4. D-9033 Document Shelf Divider
  5. D-9049 Sorter Support Brackets (set of 2)
  6. D-9085 Flat Screen Mount w/ Swivel, Arm & Mgt. Brkt
  7. D-9086A Keyboard & Mouse Tray w/swivel, arm & Mgt. brkt
  8. D-9037 Tote Bin Rail
  9. PS-200 16 Outlet Power Strip with 15' Cordset Surge Protector
