PBS-904 Packaging Workstations

Dehnco Packaging Workstations are Modular

PBS-904 Packaging Workstations are very common when the application requires increased storage of small packaging items and material.

So Many Options To Meet Your Needs…

Typical Applications

PBS-904 Packaging Workstations are very common when the application requires increased storage of small packaging items and material. The overhead sorting unit provides numerous storage bins for literature, samples, and other items to be included with the packing.

A roll bar kit and the small slat wall module provide convenient above table storage of additional supplies. The supply of cartons is stored under the table within easy reach of the worker.

PBS-904 Packaging Workstations are designed to the most ergonomic standards. Packaging Workstations are supplied with Laminated tops with rounded T-molded vinyl edges for safety and protection. All the components adjust in height to accommodate the worker and the location of all materials. Additional modules can be added to the system for increased storage of materials, supplies and equipment.

General Specifications

  • Above and Below Packaging Workstations components can be added or deleted as required.
  • Packaging Workstations are adjustable in height from 29-inches to 36-inches
  • All Packaging Workstations components are adjustable to accommodate the worker
  • All sheet metal components 14-16 gauge steel.
  • Packaging Workstations support up to 1800 lbs.
  • Workstations have rounded edges with inlaid t-molded vinyl edges for protection
  • All Packaging Workstations are provided with the highest quality tops.
  • Various Table Tops Available
    1. Laminated, vinyl edged
    2. ESD
    3. Laminated, self edged
    4. Shop top
    5. Butcher block
    6. Metal
    7. Roller bearing

Key Benefits

Organize Packaging Workstations Product Flow
Create Maximum Packaging Workstations Storage Space
Stimulate Packaging Workstations Organization
Maximize Floor Space
Increase Packaging Workstations Efficiency
Boost Packaging Workstations Productivity
Raise Worker Morale
Improve Packaging Workstations Aesthetics

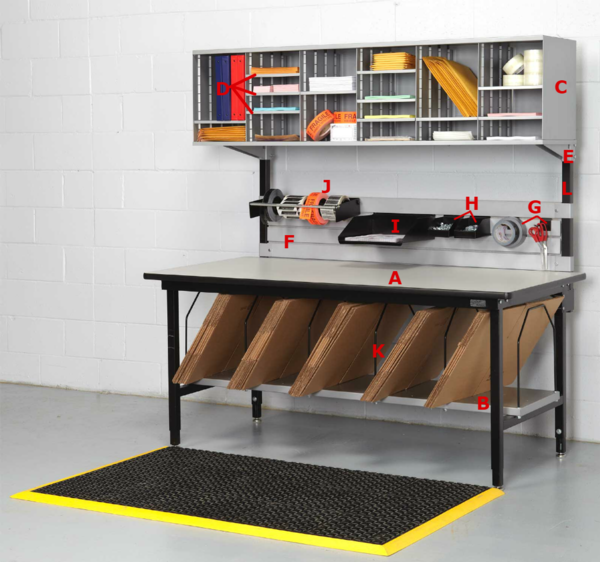

Packaging Workstations
  1. D-9000 Packaging Workstation 83 x 33 x 29-36"H
  2. D-9031A Cartoning Rack ONLY, with holes
  3. MS-6815-30 Sorter 68 x 15 x 17-3/8"H
  4. MSH-1511 Sorter Shelf 11-1/8 x 15
  5. D-9049 Sorter Support Brackets (set of 2)
  6. D-9050 Slat Wall
  7. D-9051 Slat Wall Hook
  8. D-9052 Slat Wall Small Bin
  9. D-9053 Slat Wall Literature Shelf
  10. D-9070 Cantilever Storage Arm 24" Long, for 12" wide roll
  11. D-9095 Cartoning Rack Divider
  12. D-9098 Straight Uprights (set of 2)
